6AG1124-0XC02-4AX0 Touch screen glass for HMI TP2200
|Payment Type:||T/T,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CPT|
|Min. Order:||1 Bag/Bags|
|Delivery Time:||1 Days|
|Packaging:||Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.|
|Place of Origin:||Guangdong, China (Mainland)|
Model No.: 6AG1124-0XC02-4AX0
6AG1124-0XC02-4AX0 Touch screen glass for HMI TP2200

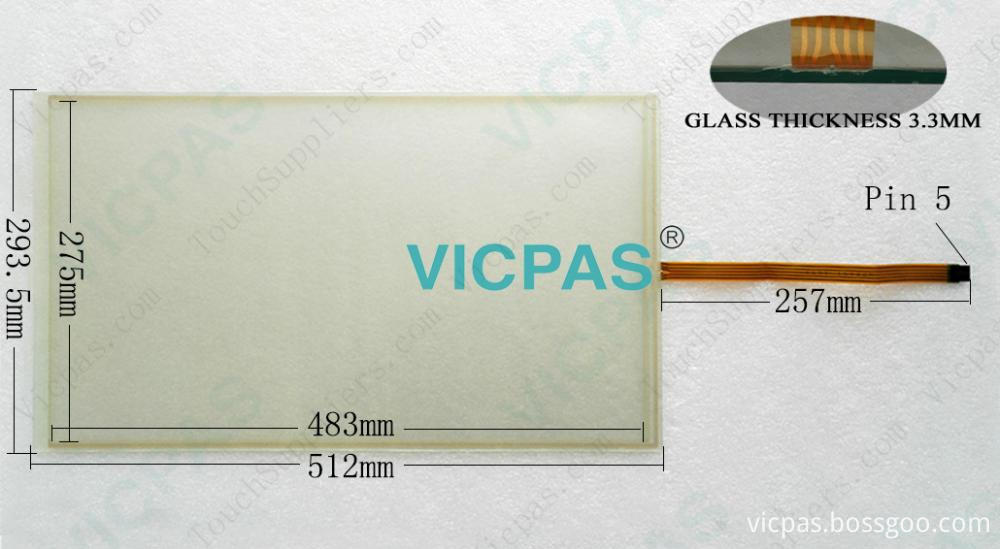

6AG1124-0XC02-4AX0 touch screen glass size: 21.5 inch, other custom size is 3.0'' to 24'' . 6AG1124-0XC02-4AX0 touch screen adopt to panel display device. 6AG1124-0XC02-4AX0 touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc. 6AG1124-0XC02-4AX0 touch screen monitor touch times are more than 1 million touches. 6AG1124-0XC02-4AX0 touch screen hmi works altitude: up to 3000m. 6AG1124-0XC02-4AX0 touch panel linearity error:< 1.5%. 6AG1124-0XC02-4AX0 touch digitizer glass response speed: < 10ms. 6AG1124-0XC02-4AX0 touch panel temperature operating range: -10°C ~ 60°C.
* Size 21.5 inch;
General Size 3.0'' to 22''
Custom Size 1.0''to 22''
Fit in with Panel display device
Linearity Error <1.5%
Response Speed <10ms
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g
Surface Durability Meets pencil hardness 3H (per ASTM D3363)
Light Transmission 80%(Meet ASTM D1003)
Temperature Operating Range: -10° C ~ 60° C
Storage Range: -20° C ~ 70° C
Relative Humidity Operating Range: 0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Altitude Up to 3, 000m
Operation Voltage Typical +DC 5V
Power Supply USB or RS232
Interface Full Duplex USB 2.0 (Full Speed) Plug and play compatible
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
Works with The Operating Systems:
LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements . all custom are available
HMI Panel Broken
The HMI panel screen are fragiled and easy been damaged or lossed function after a long time using, Some of the manufacture will replaced the whole HMI panel directly with high price, the other manufactures are hard to find the correct and good quality spare part for replaceemnt, therefore, the others would sent to the local automation or electric repair company to fix, if they don`t have accessory, then have to wait for a long time and pay more money.
Vicpas provide all kind of touch screen for HMI panel repair/replacement, we are working close with lot`s of automation and electric repair company from all over the world, Euro, North America, South America, Middle East, Asia, Africa and Australia etc, all of them stock the safety stock quantity make sure your HMI panel could be fixed in no time, all the touch screen spare part are brand new, good quality with 365 days warranty. If you are interesting, you could replace the touch screen from the HMI panel by yourself, very easy. (How to install touchscreen ), very competitive price and we will ship by DHL express, normally only take 2-5 working days to reach your hand, you don`t need to wait a long time.
If you need more details, please contact us without hesitate.
- All product are new and original packaging.
- Click on the precise, easy use.
- Reflecting the sensitive.
- Meet bad environment.
- No need change any shell and add any auxiliary to the HMI machine.
- The quality is stable and reliable, took 12 months warranty.
- OEM is available.
VICPAS have large range of stock quantity ,more than 20000 different spare in stock,we would shop out the touch screen panel within 1 or 2 days after payment .If you need special help,we would try our best to help you.
Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.
- Shipping via DHL / FedEx / UPS /TNT / TOLL / Aramex / EMS . Fast , Safe , Good service.
- We will ship the parcels within 1-3 working days after receiving your payment.
- Normally , you would receive the parcels within 3 - 5 working days. (if ship by DHL / Fedex / UPS air express) .
- Please make sure your shipping information are all in correct way (including address / post code / phone number / contact person / VAT number ).
VICPAS has employed a variety of methods to improve the performance of the entire work force with a superior customer service strategy , aiming to provide excellent service and high quality products to meet or even exceed our customer`s expectations.
The key features of VICPAS customer service are as below:
1.Systematic management system to delivery right products to our customers.
2.Strictly quality control management system to maintain quality at sustainable level.
3.Honesty Culture makes sure to be your long term strategic partner in China
4.Unique and creative products and competitive price keep you in a competitive market position in harsh marketing environment.
5. VICPAS provide a 1 year warranty for all the touch screens and 6 months warranty for all the membrane keyboard.
1. When you get the goods, please help to notice us .
2. If you have any problem please contact us , pls let us know about the problem . We will try our best to solve the problem for you ASAP.
Thank you very much for your interest in VICPAS products and VICPAS Company, below are few questions you may want answers.
1. How does the resistive touch screen work?
When you press your finger on a resistive screen, the top, flexible layer touches the bottom one, and the interruption in the electrical current is noted by the device, and it calculates the precise location of the point of contact. Depending on what button is located under your finger, the software registers the coordinates and performs the command. they respond to pressure, you can activate them with bare fingers, gloves, or styluses (remember the PalmPilot ?), but you can't swipe or use multi-touch gestures, because the electric current encased within can only successfully register one point of contact at a time.
2. Does VICPAS accept shipping via buy's account?
Sure, VICPAS accept to ship out the parcel by all customers express account, such as DHL, Fedex, UPS, TNT and etc. we could even send the parcel to your forwarder in China immediately after payment, we are always try our best to reduce every penny for customers as possible as we could.
3. Is there a circuit diagram I can refer to ?
Yes, circuit diagram is available in the product specification sheet.Please refer to the specification sheets available in Analog Resistive Touch screen Controller (4W-TFT) for 4 wire resistive controller.Please refer to the specification sheets available in Analog Resistive Touch screen Controller (5W-TFT) for 5 wire resistive controller.
4. What kind of Touchscreen do Vicpas make for?
Vicpas Touch make high quality Touch screen panel developing , designing ,manufacturing,as well as for automation HMI, Medical,CNC, POS terminal etc, we also help our customers about the EDM and OEM services for their different sizes customized Touch screen panel.
5. If I need a resistive single touch screen whose specifications are tailored to my needs.
VICPAS can provide a resistive single touch screen customized to your requested specifications. Please contact us for more details.
6. How is your production management and quality control system?
VICPAS develops process - oriented QMS to identify and meet needs of customer requirement and expectation in an effective and efficient manner to achieve competitive advantage.
All our product process follows up ISO9001: income quality checking, in process quality checking, final product quality checking. The strict implementation of ISO9001 assures to provide error – free products to our customers.
We will show you these in our workshop during your visiting.
If you are interested in our products,please contact us for further information without hesitate.We will reply you as soon as we receive your inquiry.
VICPAS Looking forword to your cooperation. To VICPAS homepage
GUANGZHOU VICPAS TOUCH TECHNOLOGY CO.,LTD
Guangzhou Vicpas Touch Technology Co., Ltd. is a renowned and professional Touch screen Panel, Keyboard membrane and Accessories manufacturer in a global spectrum.
After more than 10 years of accumulated experience and continuous improvement of quality control, at the same time a reliable strategic partner and supplier of worldwide top companies.
Vicpas's success depends on customers support, provide One-stop shop service with the win-win relationships. Since entering the global market, we have continued to set up new standards for reliable performance, exquisite design and customer service.
As a professional OEM/ODM supplier, we have modern machines and scientific management system guarantee high quality and on time delivery. Vicpas total output of Touch screen panel and Keyboard membrane Accessories reach 500,00pcs per month. Our products are mainly exported to more then 60 countries, especially European and America.
Vicpas's concept is to provide superior ratio of price and quality products for our partners and customers to strengthen their competence in their local markets.
Vicpas Touch will be one of your best strategic business partners in Faucet industry in China.
Our Slogan: Touch Vicpas, Touch The World!
