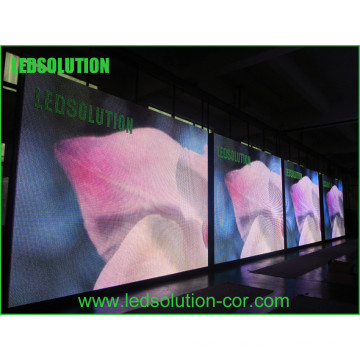

20mm Outdoor LED screen
Basic Info
Model No.: LS-O-P20
Product Description
Model NO.: LS-O-P20 IP Rating: IP65 Pixel Configuration: 2R, 1G, 1B Average Power Consumption: 196W/M&Sup2 Display Type: LED Video Display Certification: CE, RoHS, UL, ETL Viewing Angle: 130/60 Resolution Per Panel: 64X48 Trademark: LEDSOLUTION Origin: Guangdong, China. Tube Chip Color: Full Color Pixel Pitch: 20mm Display Function: Video Display Pixel Density: 2500DOT/M&Sup2 Application: Advertising Brightness: 6, 000nits Panel Size: 1,280X960mm Panel Material: Epoxy Paint Coated Cold Rolled Steel Specification: CE, RoHS, ISO, UL, ETL HS Code: 8528591090 Features of the Outdoor LED Display:
*Weatherproof to IP65 standards
*High resolution images and long lifetime
*Easily configured for various size and aspect ratios
*Wide viewing angle and long viewing distance
*Brightness from 6000 nits onwards
Contact us if you need more details on Outdoor LED Screen. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Outdoor LED Sign、P20 LED Display. If these products fail to match your need, please contact us and we would like to provide relevant information.
*Weatherproof to IP65 standards
*High resolution images and long lifetime
*Easily configured for various size and aspect ratios
*Wide viewing angle and long viewing distance
*Brightness from 6000 nits onwards
| Parameter | Unit | Value |
| Pitch | mm | 20 |
| Brightness | nits | 6, 000 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 60.5 |
| Panel width | mm | 1, 280 |
| Panel height | mm | 960 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 1.229 |
| Panel material | Epoxy paint coated Cold rolled steel | |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 2, 1, 1 |
| Resolution per panel | 64x48 | |
| Dot per panel | 3, 072 | |
| Dot per sq. meter | 2, 500 | |
| LED per sq. meter | 10, 000 | |
| Recommended minimum viewing distance | m | 20 |
| Recommended best viewing distance | m | 25~67 |
| Colors | 1, 073.7 millions | |
| Grey scale (linear) | Levels | 1, 024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1, 000: 1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / sq. m. | 488 |
| Input power (typical) | Watts /sq. m. | 196 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI, MPG, AVI, WMV, RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Fixed with 4pcs M10 bolts |
Contact us if you need more details on Outdoor LED Screen. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Outdoor LED Sign、P20 LED Display. If these products fail to match your need, please contact us and we would like to provide relevant information.
